We are Manufacturer, Supplier, Exporter of Toroidal Transformers and Toroidal Current Transformers - TORO-BOX-OMEGA-55.Our set up is situated in Pune, Maharashtra, India.

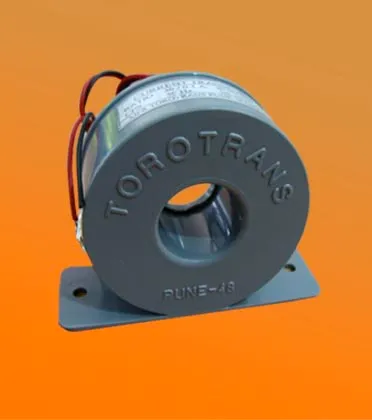

CODE NO. : TORO-BOX-OMEGA-55
Toroidal Current Transformers
-TORO-BOX-OMEGA-55
Toroidal Current Transformers
-TORO-BOX-OMEGA-55

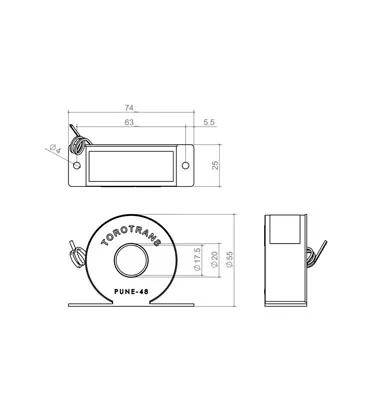

All dimensions are in mm.
Schematic
Specification :
| Primary Current Range | : | 30 - 200 Amp |
| Secondary Current | : | 0.1 Amp |
| VA Rating | : | 0.5 VA |
| Accuracy Class | : | 1 |
| Frequency | : | 50 / 60 Hz. |
| Secondary Voltage | : | 4.95 - 5.05 Volt @50 |
| H.V. Test | : | Between Primary to secondary 2 KV. |
| Winding | : | Class F |
| Insulation | : | Class B |
| Operating Temperature | : | -15 to 70 deg. Celsius |
| Termination | : | Flying Lead Red-start, Black - End. |
| Mounting | : | Base plate, with flying leads |
Features / Applications:
- Current transformers are used for electrical measuring instruments and / or electrical protective devices.
- They are very useful in high power circuits where the current is large.
Note :
- We also manufacture nonstandard current transformer to meet the customers specification.
- Due to constant attempt to improve the design and due to change in the quality of material available, the figures given above are for general guidance only and are subject to confirmation.
