We are Manufacturer, Supplier, Exporter of Toroidal Transformers and Toroidal Current Transformers - TORO-RING-32. Our set up is situated in Pune, Maharashtra, India.


toroidal-power-transformers-m

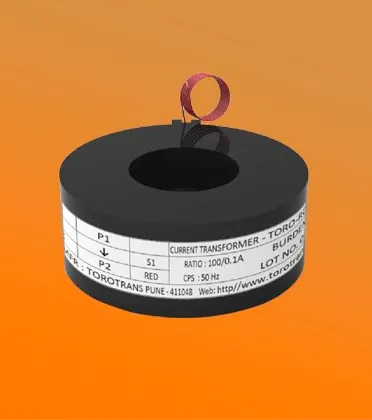

Toroidal Current Transformers
-TORO-RING-75

toroidal-power-transformers-m

Toroidal Current Transformers
-TORO-RING-75

toroidal-power-transformers-m

Toroidal Current Transformers
-TORO-RING-75

toroidal-power-transformers-m

All dimensions are in mm.

toroidal-power-transformers-m

Schematic

Specification :

Primary Current Range : 50 - 300 Amp
Secondary Current : 0.1 Amp
VA Rating : 1 VA
Accuracy Class : 1
Frequency : 50 / 60 Hz.
Secondary Voltage : 9.90 - 10.1 Volt @100torotrans
H.V. Test : Between Primary to secondary 2 KV.
Winding : Class F
Insulation : Class B
Operating Temperature : -15 to 70 deg. Celsius
Termination : Flying Lead Red-start, Black - End.

Features / Applications:

  • Current transformers are used for electrical measuring instruments and / or electrical protective devices.
  • They are very useful in high power circuits where the current is large.

Note :

  • We also manufacture nonstandard current transformer to meet the customers specification.
  • Due to constant attempt to improve the design and due to change in the quality of material available, the figures given above are for general guidance only and are subject to confirmation.

ce-rohs

Toroidal Transformer in the range 15VA-5 KVA
